Description

About this item

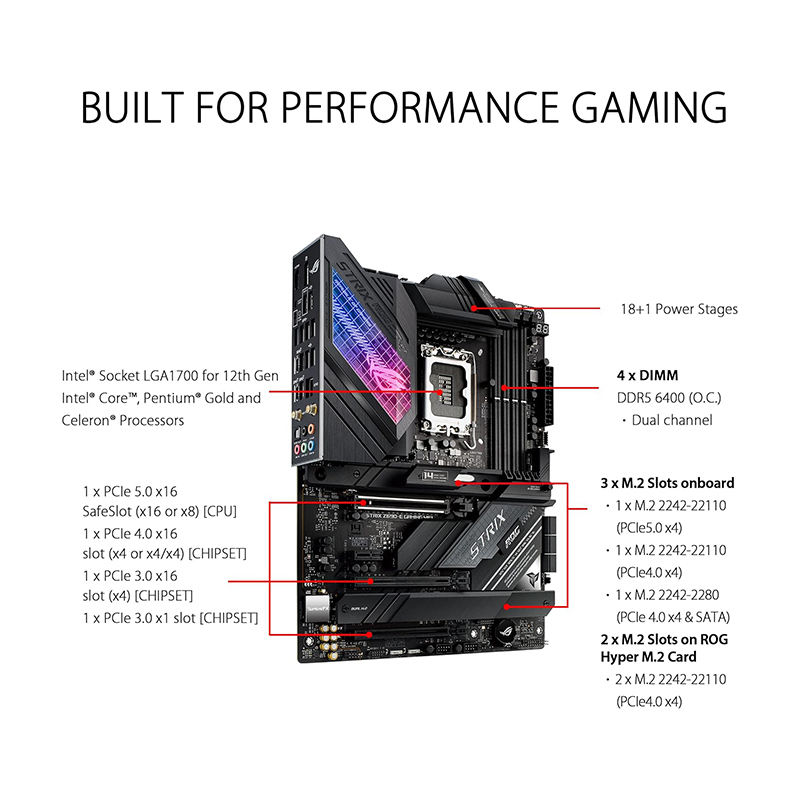

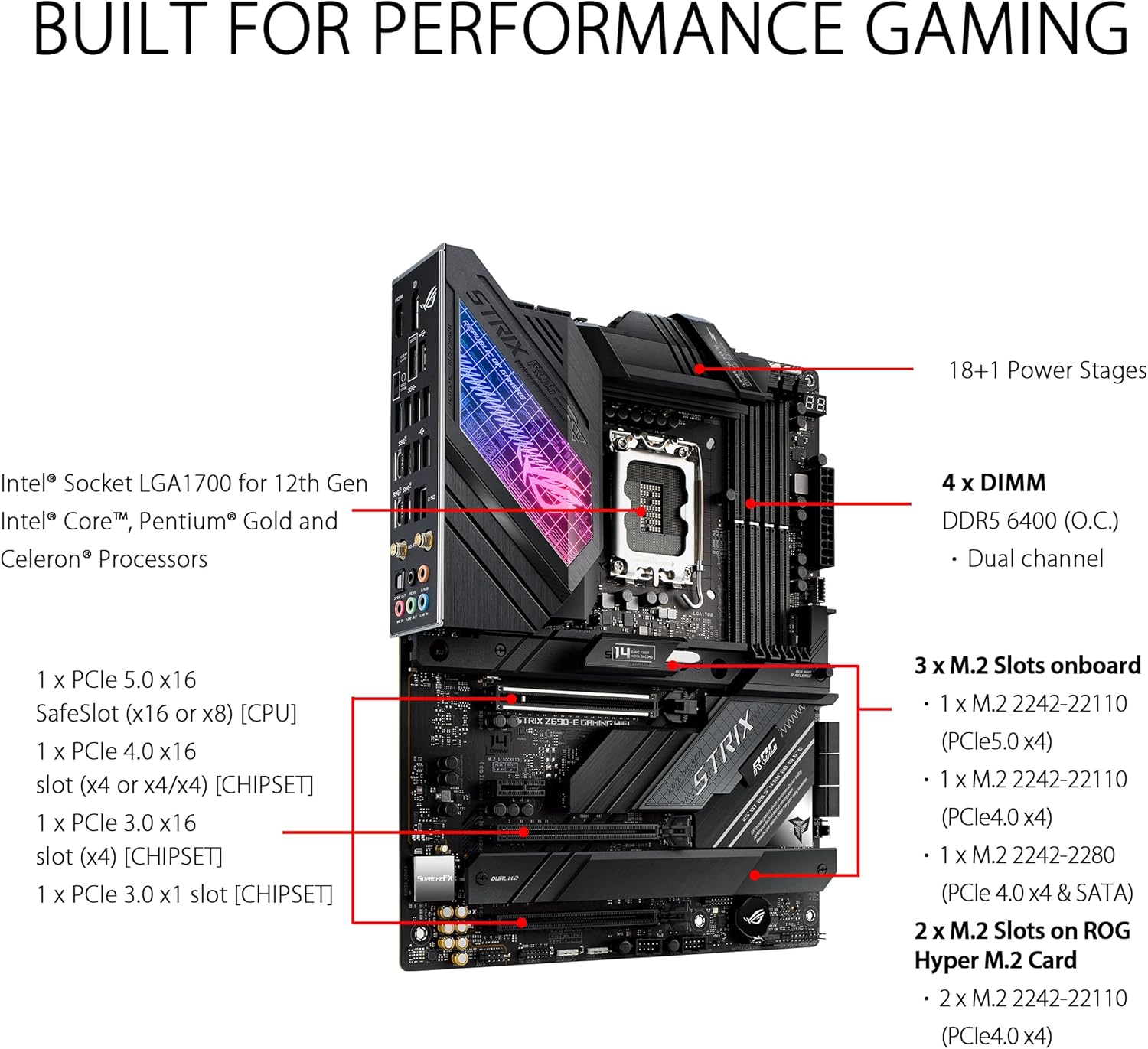

Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors, support PCIe 5.0,DDR5 and out of box Windows 11 ready.Wireless and Bluetooth: Bluetooth v5.2.Wireless and Bluetooth : 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band.
AI Motherboard : AI Overclocking, AI cooling, AI networking(GameFirst VI) and AI noise cancellation
Robust Power Solution: 18plus1 90A power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
High-performance Gaming Networking: On-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard

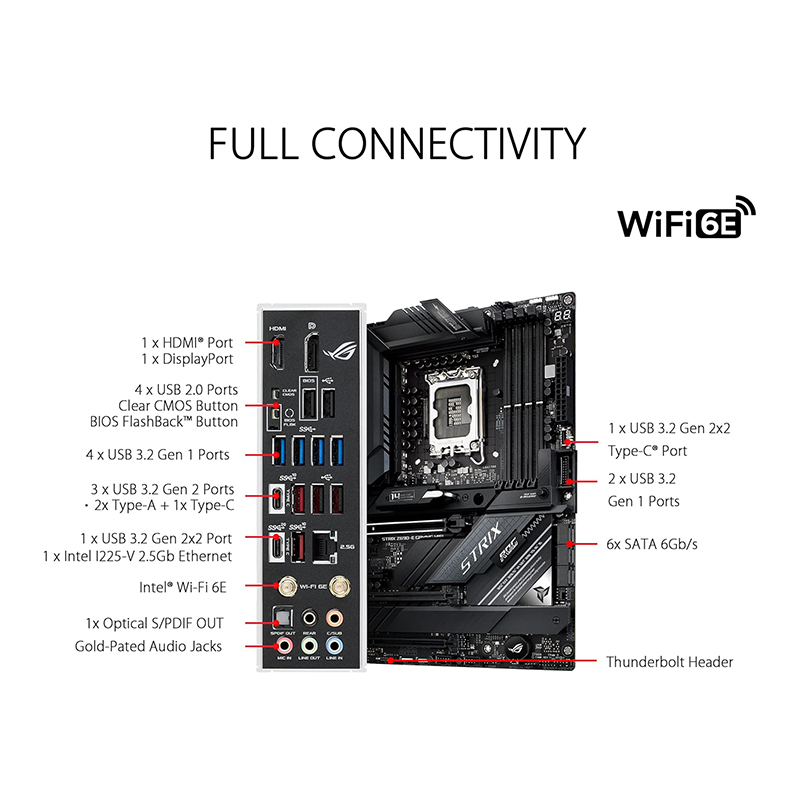

Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, and support up to 5xM.2 slots, 1x PCIe 5.0 M.2 , bundled with ROG Hyper M.2 card and USB 3.2 Gen 2×2 Type-C and Type-A and Front panel USB 3.2 Gen 2×2 Type-C connectors
PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack, Clr CMOS button, Q-Code and FlexKey (Reset, Aura on/off, Direct key)

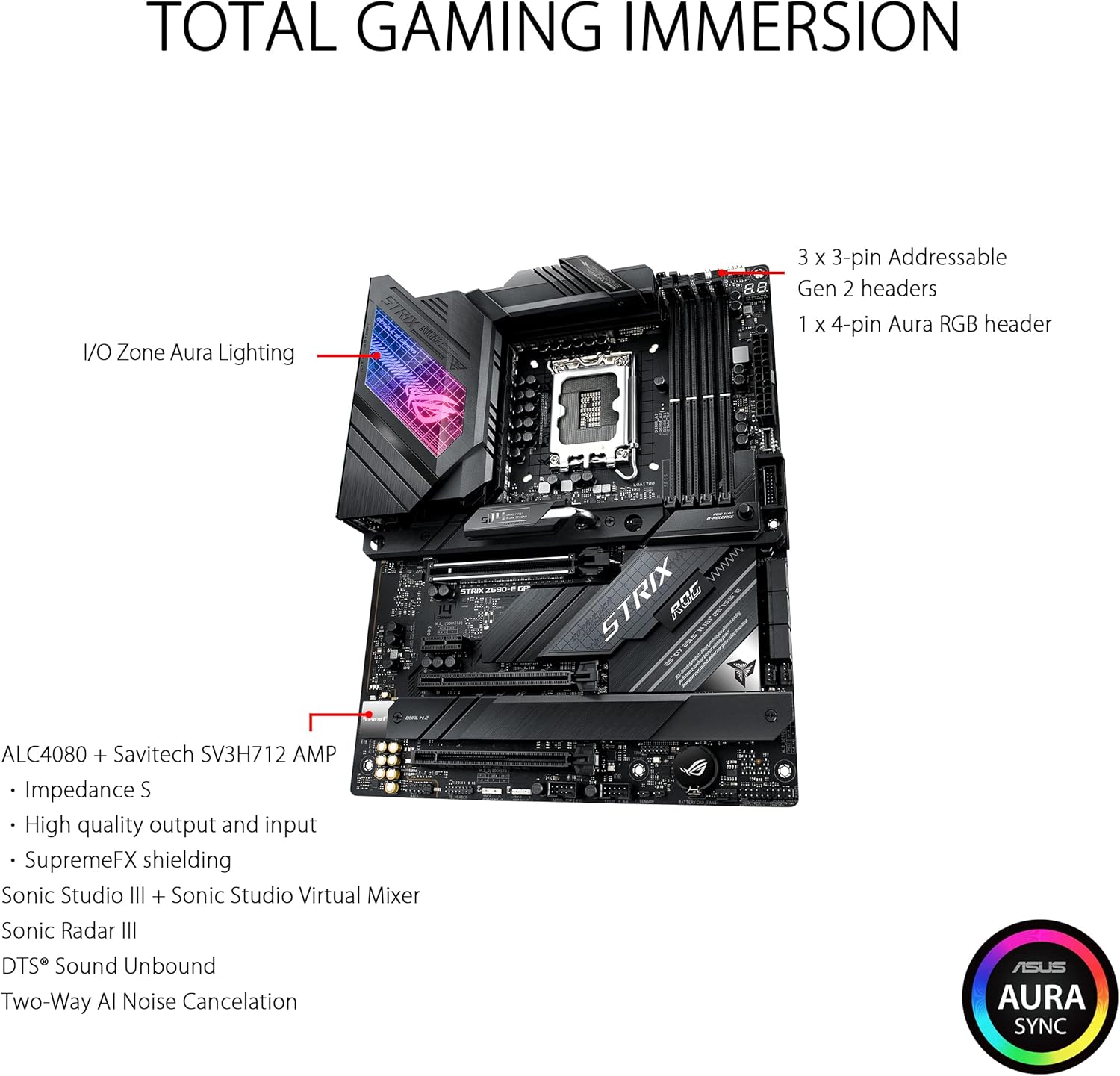

Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
New ROG Strix Aesthetics: New ID design, Illuminated Acrylic Display, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

Additional information

CPU Socket	LGA 1700
RAM Memory Technology	DDR5
