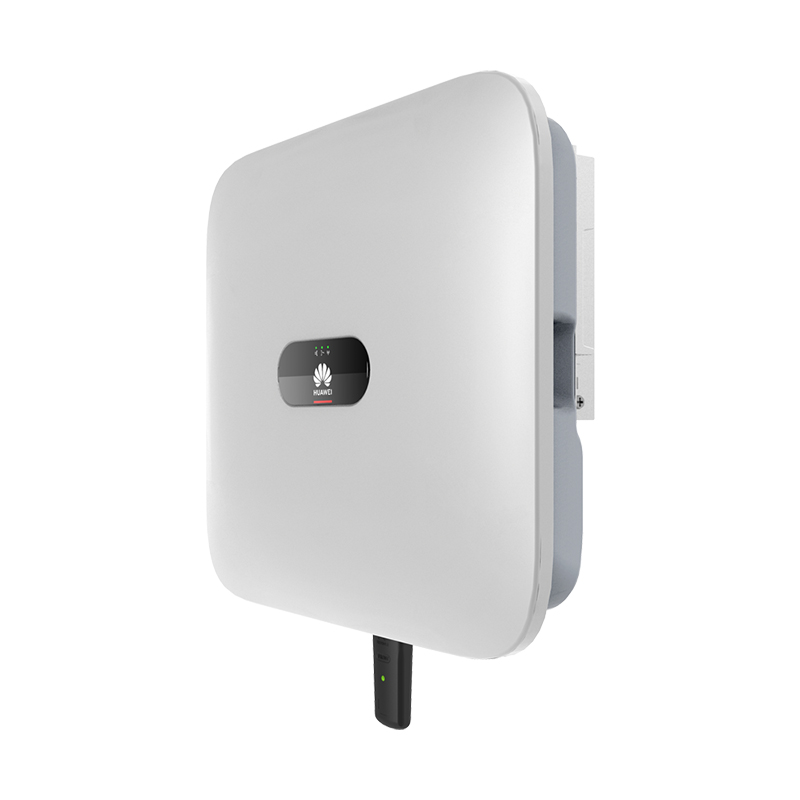

Huawei SUN2000-10KTL-M1

Product Specifications

• Max Efficiency: up to 98.6%
• European Weighted Efficiency: up to 98.1%
• Recommended Max PV Power: 4,500–15,000 Wp (depending on model)
• Max Input Voltage: 1,100 V
• Operating Voltage Range: 140–980 V
• Startup Voltage: 200 V
• Rated Input Voltage: 600 V
• Number of MPPTs: 2
• Max Input Current per MPPT: 13.5 A
• Compatible Battery Models: LUNA2000 series
• Max Charge Power: 10,000 W
• Grid Connection: Three-phase
• Rated Output Power: 3,000–10,000 W (depending on model)
• Max Apparent Power: up to 11,000 VA
• Rated Output Voltage: 220/230/380/400 V AC
• Max Output Current: up to 16.9 A
• Power Factor: 0.8 leading to 0.8 lagging
• Protection Features: Anti-islanding, surge protection (DC & AC), overcurrent, overvoltage, short-circuit, arc fault, residual current monitoring, insulation monitoring
• IP Rating: IP65
• Operating Temperature Range: -25 °C to +60 °C
